Glass filling Machine
Suitable Products: Carbonated soft drinks/ Beer/ Fruit juice/ sparkling water/ wine etc.
Suitable Containers: Glass round or square bottle

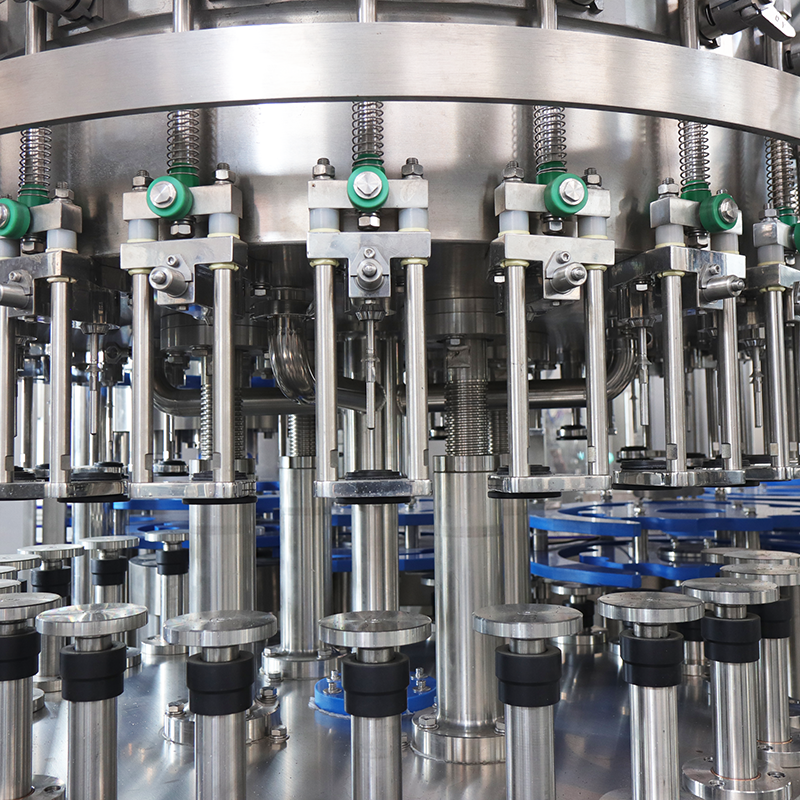

Filling Methods: Mechanical valve filling, flow meter filling, weight-based filling, or laser level filling
Production Capacity: 3500-18000BPH

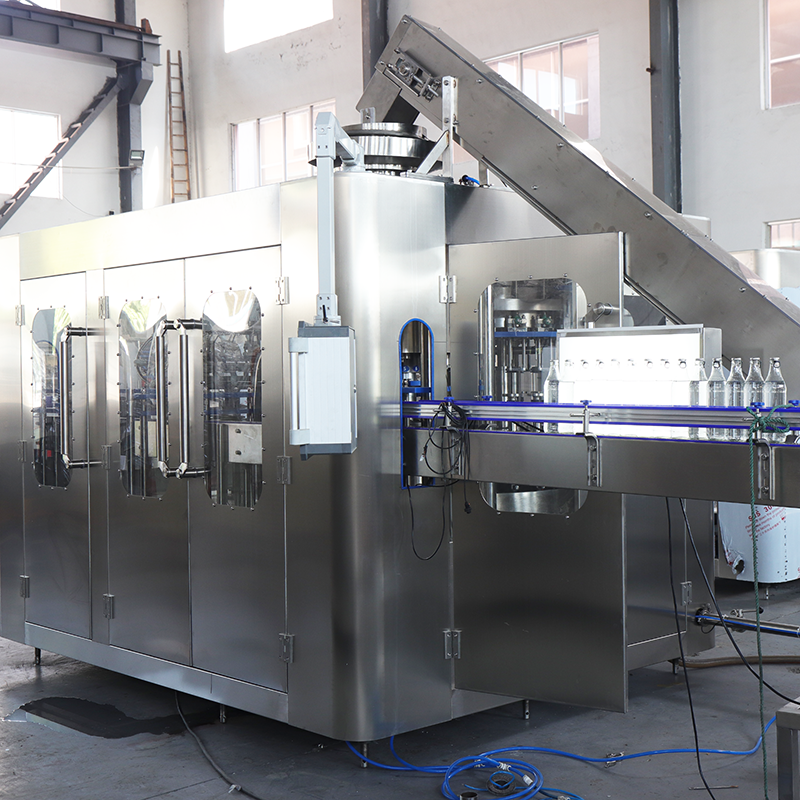

Glass bottle filling machine
| Model | 2016 /12/ 6 | 18 -18 -6 | 24 -24 -8 | 32 -32- 10 | 40 -40 -12 |
| Capacity (for 500 ml) | 3 500 -4 000 | 4 500 -6 000 | 8 000 -12 000 | 12 000 -14 000 | 15 000 -18 000 |
| Suitable bottle shapes | Glass round or square bottle | ||||
| Bottle volume | 200 -2000 ml | ||||
| Bottle height | 160 -320 mm | ||||
| Compressor air | 0.3 -0.7 Mpa | ||||
| Washing meidium | Aseptic water | ||||
| Rinsing pressure | >0.06 Mpa <0.2 Mpa | ||||
| Total power (KW) | 4. 61 | 4. 61 | 5. 41 | 6. 41 | 9. 63 |
| Machine dimensions (m) | 2.5* 1.9 | 2.8* 2.15 | 3.1* 2.5 | 3.8* 2.8 | 4.5* 3.3 |
| Height (m) | 2. 5 | 2. 5 | 2. 5 | 2. 5 | 2. 6 |
| Weight (kg) | 3 200 | 4 000 | 4 500 | 6 500 | 8 000 |
Detailed description

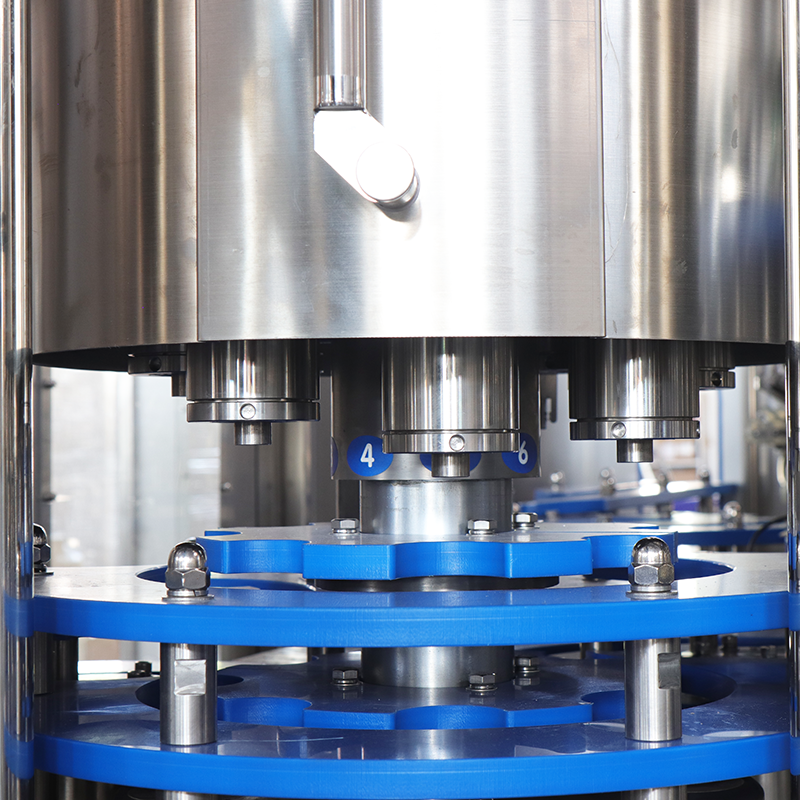

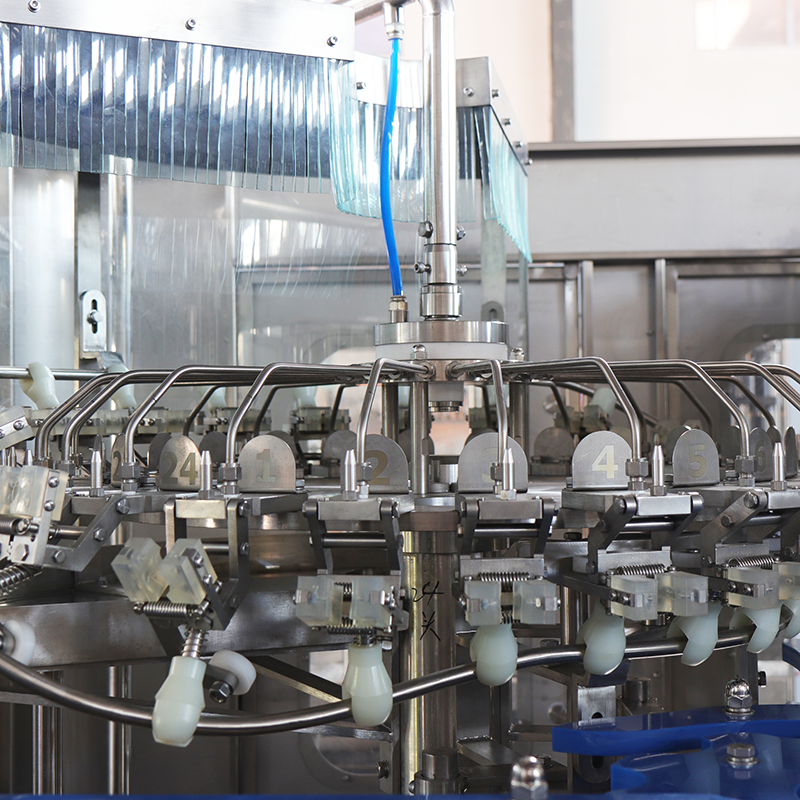

The series of 3 in 1 glass bottle filling machines is specially used for glass filled various fruit juice, flavour drinks,beer, carbonated soft drinks dairy drinks, soybean milk, ice tea drinks, wine, alcoholic beverages, vodka, nectar and other still beverage fillings. Filling with one or two times vacuum technology, with bottle automatic valve closing and washing broken glass function, before capping using hot water bubble and other functions.
